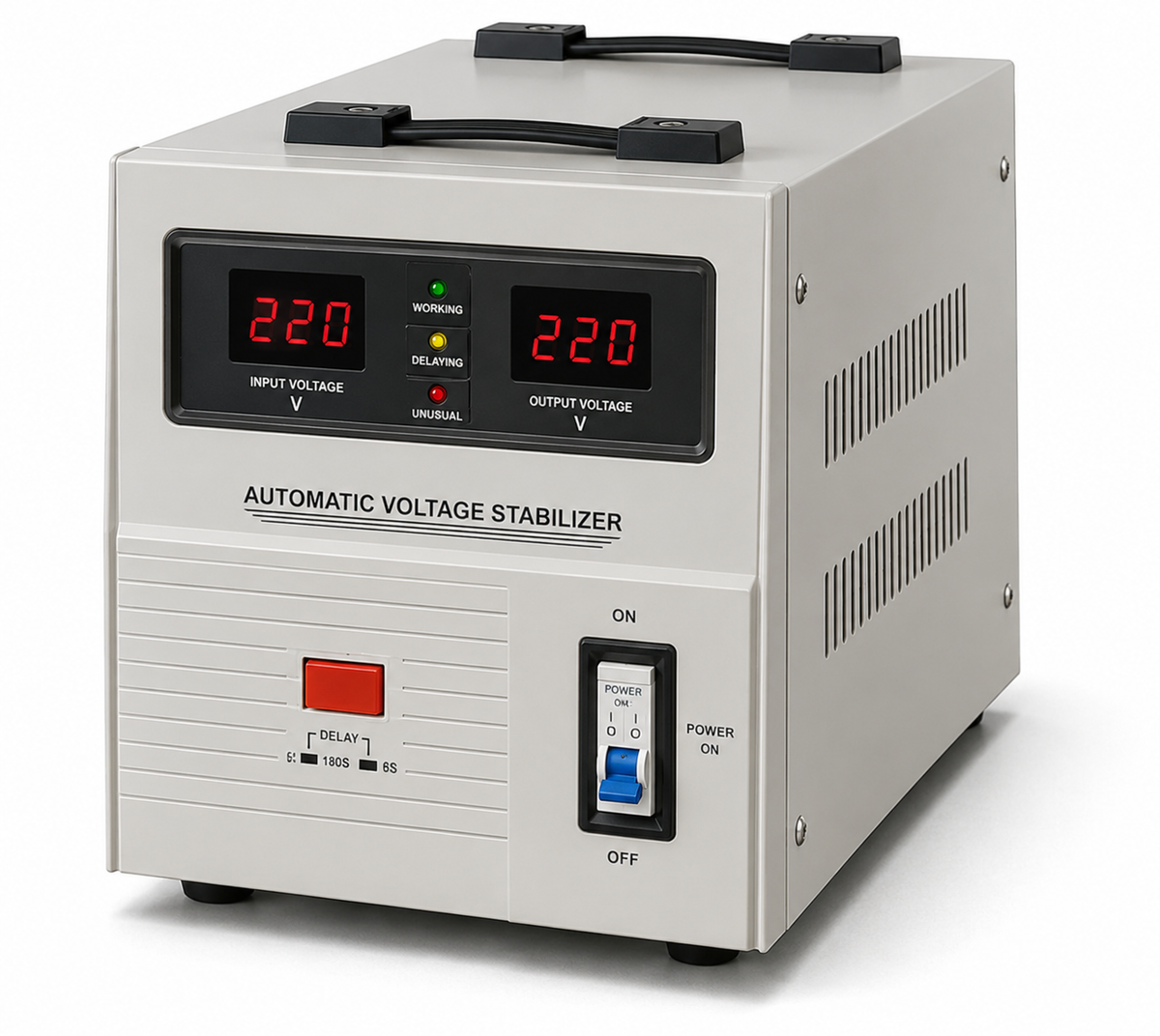

1kVA Servo Series Automatic Voltage Stabiliser (Single Phase)
R 805.00
(incl. VAT)
Servo single-phase high accuracy full-automatic AC voltage stabiliser is an in-line device made up of auto voltage regulator, servo motor, automatic control circuit, etc.
When the power voltage fluctuates or the load varies, the automatic sampling control circuit will adjust the servo motor which automatically regulates the output voltage. Included is phase drop out which will switch off the power to the equipment load in the event of a phase loss.
The AVR will also switch off the power to the load should the under and over voltage parameters be met. There is also a high voltage protection delay of 1 second before switching on.
Technical specification
| Rating | 1 kVA |
| Input voltage (single phase) | 184V – 276V |
| Frequency | 50 Hz |
| Voltage output | 230V ±3% |
| Adjustable time | < 1 sec (when input voltage variance < 10%) |
| Output precision | ±3% |
| Warranty | 12 (twelve) months |
